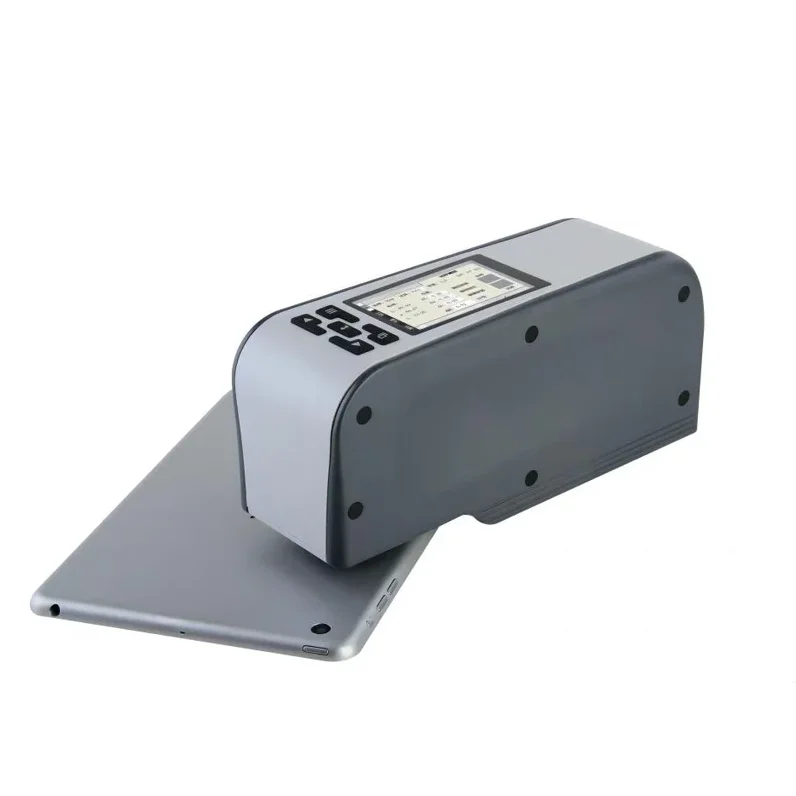

Color consistency has become one of the defining indicators of manufacturing quality across industries ranging from automotive interiors and industrial coatings to consumer electronics, textiles, flexible packaging, medical devices, and plastics. As global product standards evolve, manufacturers are transitioning from subjective visual inspection toward quantitative, reproducible, instrument-based color evaluation. In this landscape, the Horizontal Colorimeter developed and optimized by Shanghai Zhenxin stands out as a high-performance solution engineered for accurate, stable, and fast color measurement across multiple application environments.
Designed with interchangeable 4 mm, 8 mm, and 16 mm apertures, the instrument enables precise evaluation of different surface geometries and material types. Whether assessing small components, medium-textured substrates, or large planar surfaces, the horizontal colorimeter delivers unmatched versatility supported by laboratory-grade optical performance.
I. The Evolving Need for High-Accuracy Color Measurement
As manufacturing becomes increasingly automated and globally standardized, traditional color-checking methods—visual comparison, manual swatches, uncontrolled lighting—are no longer sufficient.
Industries now demand:
Numerical color data compatible with global standards
High repeatability across operators and shifts
Integration with digital quality-control workflows
Fast measurement cycles suitable for inline checks
Stability under varied environmental conditions
The Horizontal Colorimeter meets these modern requirements through a combination of precision optics, optimized signal processing, and robust mechanical design—key elements refined by Shanghai Zhenxin’s engineering and industrial expertise.
II. Multi-Aperture Architecture: A Single Device, Multidimensional Capabilities
A critical advantage of Shanghai Zhenxin’s horizontal colorimeter is its three-aperture design, enabling high accuracy on diverse surface structures.
1. 4 mm Aperture – Precision for Small and Complex Components
Used for:
Electronic housings
Molded connectors
Small polymer parts
High-curvature surfaces
This aperture provides localized readings without averaging surrounding regions, delivering extremely precise micro-area evaluation.
2. 8 mm Aperture – Ideal for General Industrial Surfaces
Suitable for:
Packaging materials
Medium-textured plastics
Ink and coating samples
Leather or synthetic substrates
The 8 mm aperture balances measurement area and sensitivity, making it the most commonly used configuration in routine QC.
3. 16 mm Aperture – Stability for Large Surfaces
Widely applied in:
Automotive interior panels
Decorative laminates
Textile sheets
Plastic boards
The larger measurement window improves uniformity detection and provides stable data on wide-format substrates.
This flexible design eliminates the need for multiple instruments and ensures consistent cross-aperture calibration.
III. Core Strengths: Stability, Speed, and High-Resolution Data
1. Unmatched Stability
Shanghai Zhenxin employs long-term optical drift-control systems and temperature-compensated measurement modules.
This enables:
Minimal measurement deviation over long inspection cycles
Reliable performance during continuous production
Stability across environmental fluctuations
2. Industry-Leading Measurement Speed
Optimized photoelectric conversion and high-frequency data acquisition allow each measurement to be completed in milliseconds.
This supports:
High-throughput sampling
Inline inspection
Automated robotic QC stations
3. High-Accuracy Spectral Evaluation
With refined calibration algorithms and precision optical filters, the horizontal colorimeter achieves:
Excellent ΔE repeatability
Low inter-instrument variation
Accurate color matching against industry standards (CIE, ISO, GB/T)
This foundation makes it one of the most reliable devices for critical color control.
IV. Advanced Color Simulation: Beyond Traditional Colorimetry
In today’s digital manufacturing environment, raw color values are no longer sufficient. Engineers require intuitive and predictive decision tools. The horizontal colorimeter integrates advanced color-simulation functions, enabling:
Digital reconstruction of sample appearance
Multi-angle color prediction
Visual comparison of acceptable and unacceptable color tolerances
Batch uniformity analysis
Product-grade pass/fail evaluation
This transforms data into visual outcomes, improving communication between R&D, production, and quality departments.
V. Designed for Smart Manufacturing Integration
Shanghai Zhenxin has engineered the horizontal colorimeter to function not only as a standalone measurement device but also as a critical component in connected factory environments.
The instrument supports integration with:
MES/ERP systems
Quality-inspection software
Automated inspection machines
Statistical process control modules
Data-traceability networks
This enables end-to-end digital color lifecycle management: from raw materials to finished goods, every color deviation becomes measurable, traceable, and correctable.
VI. Applications Across Industries
Because of its flexible aperture system and exceptional measurement performance, the horizontal colorimeter is widely applied in multiple sectors:
Automotive: dashboards, trims, decorative panels
Plastics: masterbatches, molded components
Printing & Packaging: inks, laminates, label films
Textiles & Leather: colorfastness assessment, batch consistency
Electronics: device housings, accessories
Coatings & Paints: color dispersion, uniformity measurement
In each field, the instrument improves consistency, reduces waste, and ensures compliance with global visual standards.
VII. Shanghai Zhenxin: Engineering the Future of Color Quality
With strong foundations in optical engineering and industrial inspection, Shanghai Zhenxin continues to refine the performance and reliability of high-precision color-measurement technology.
The horizontal colorimeter reflects the company’s commitment to:
Data-based quality assurance
High-precision industrial instruments
Intelligent manufacturing solutions
Customer-driven engineering optimization
By combining research, manufacturing, and practical industrial experience, Shanghai Zhenxin provides a next-generation tool for scientific, repeatable, and globally reliable color control.
